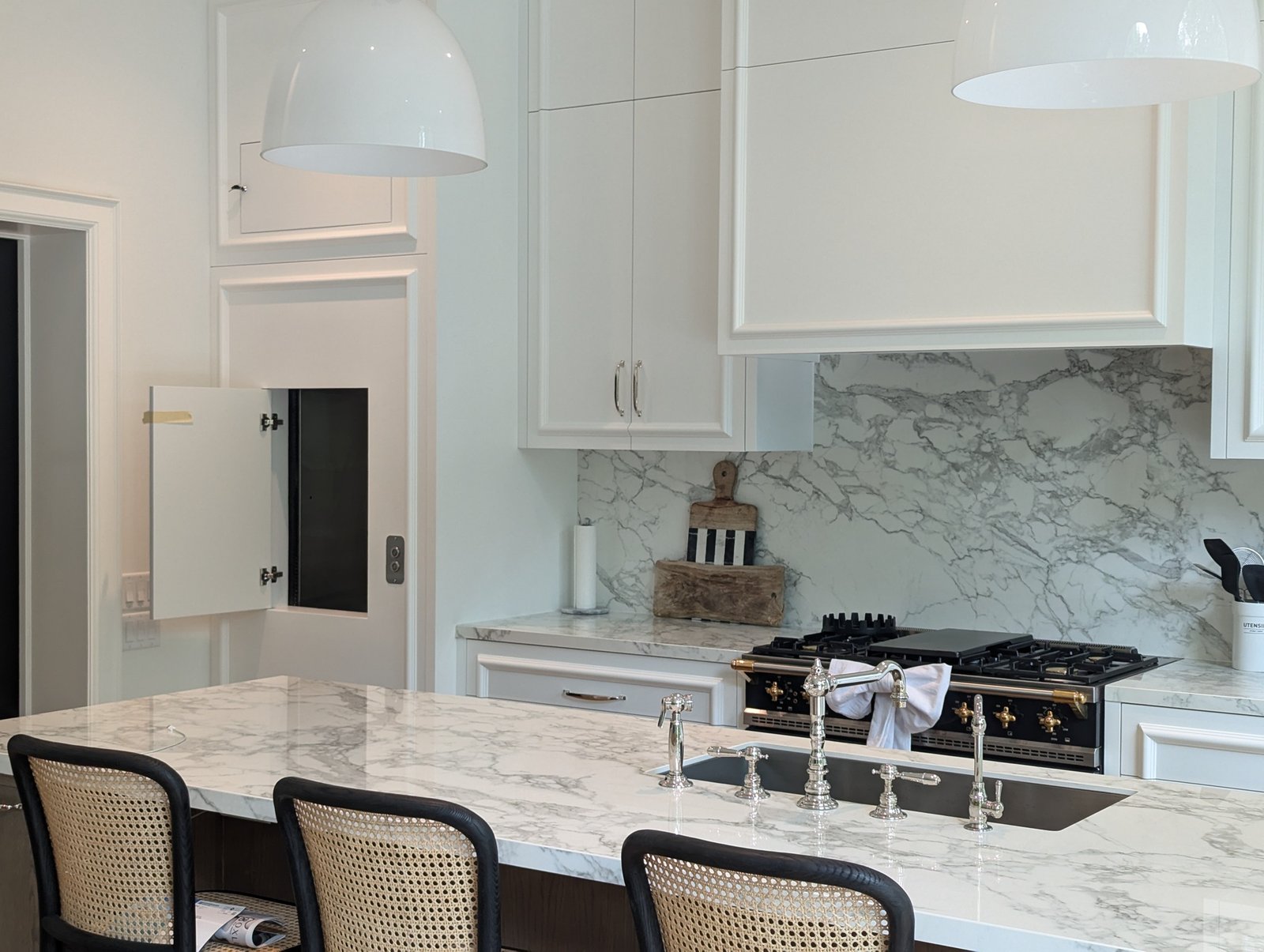

Home Dumbwaiter Elevators
Home dumbwaiter Elevators are small freight elevators that are designed to transport goods rather than people. Typically installed in private homes with two or more levels, these small service elevators are used to move items between multiple floors quickly and effortlessly. Home dumbwaiters are equipped with closed cabin, pulley systems, and safety features to ensure smooth and secure transportation of goods between floors.
Premimum quality home Dumbwaiter Elevators, Know the differance !

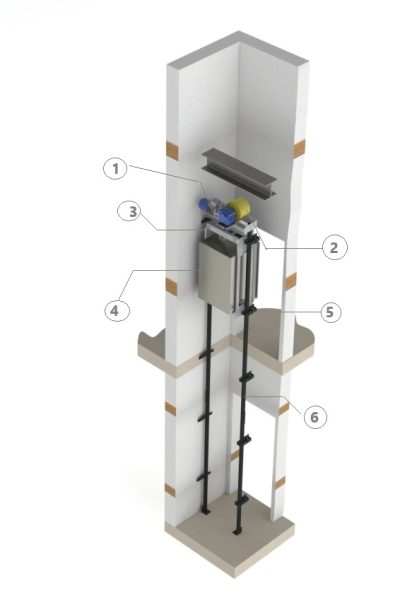

Listed below some of our featurea and benifits of our residential Dumbwaiter Elevators.
1-Hig Quality Worm Gera Motor
Worm gears’ main advantage is its capacity to generate high reduction ratios and, as a result, high torque multiplication.
This kind of gear works as a secondary braking system as the pressure cannot transmit motion back via the worm/hoist.
2-High Strength Nylon Winding Rope Drum
A Nylon rope drum is used in Dumbwaiter Elevators to wind, store, and deploy steel wire ropes or cables. The drum is cylindrical in shape and rotates around a central axis. As it turns, the steel rope is wound onto or unwound from the drum in a controlled manner. Providing for a smooth reliable movement of the Dumbwaiter Cabin.
3-Intragrated Motor Brake System
Intragrated Electric motor brakes are a type of brake used to stop and hold loads that are driven by motors. Motor brakes are designed to work in conjunction with a motor to slow and stop motion of the Dumbwatier.
4- Motor Speed Reducer
A gearbox is a gear train designed to modify the speed and torque characteristics of a motor. When gearboxes reduce speed, they simultaneously increase the torque (turning force) at the output. When they increase speed, they reduce torque. Providing for a Smooth reliable Dumbwaiter.

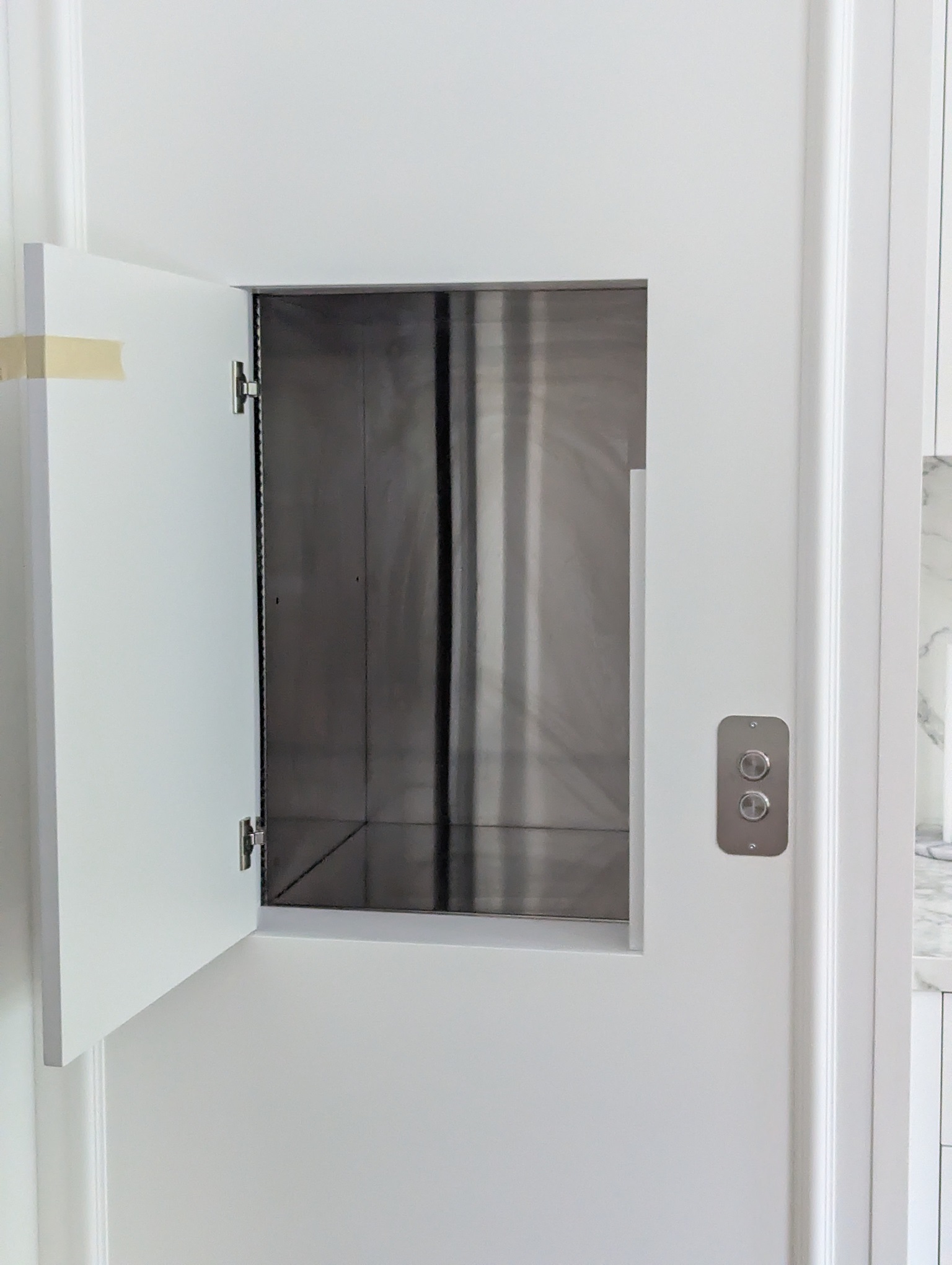

5-Steel or Stainless Steel Cabin

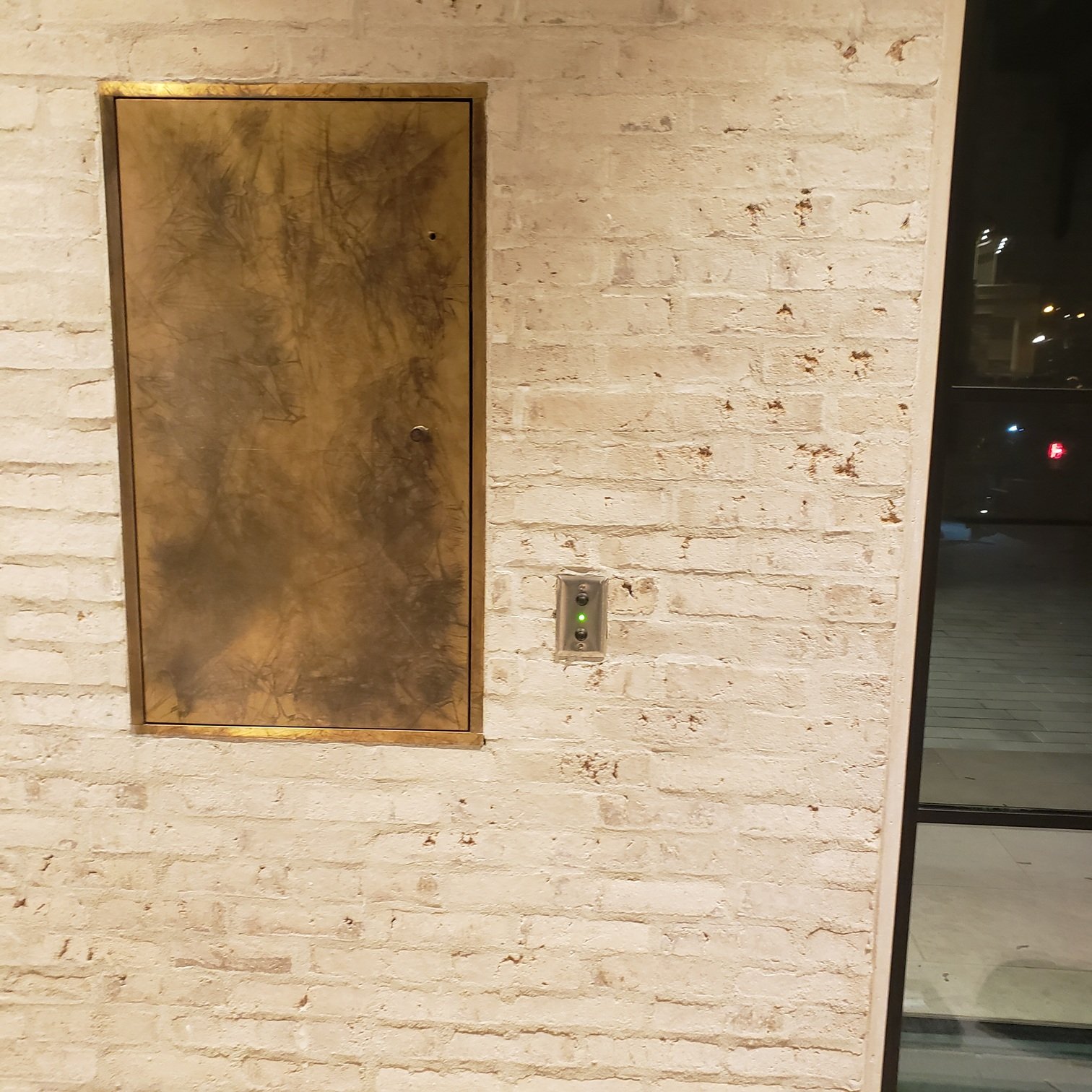

The tensile strength of Steel or Stainless steel is high thus the right choice for Dumbwatier elevator interiors which is under persistent operation forces. Custome colors and finishes available to fit your decor.
6- Heavy gage Steel Sling
The cabin/platform is placed in a sling, also known as the frame of an Dumbwatier elevator, and is supported by Heavy gage stee. This gives the platform support as it’s carried with the cab walls, flooring and ceiling throughout the hoistway.
7- "T" Shape Elevator Type Guide Rails
“T” Shape guide rail is a rigid track that is installed between two or more columns in an Dumbwatier elevator shaft or between floors, and to keep the cabin moving up and down, The biggest advantage of using a “T” shape guide rail is the precision and quality of Dumbwaiter ride with reliablity.
8-Heavy Gage Steel Rails Brackets
Use of heavy gage steel rails brackets is to provide provide reliable ride for years to come.
Opposising Rails desing
With guide rails on opposite sides, there is a more even distribution of forces acting on the Dumbwaiter elevator car. This can help prevent misalignment or excessive movement in the event of an emergency stop, providing a safer more reliable experience.
Dumbwatier Cab Style On/Off Same side
Dumbwatier Cab Style On/Off Opposite side
Dumbwaiter Loading Options
- Dumbwaiters can be loaded from the front, rear, or side, depending on the installation needs and model configuration.

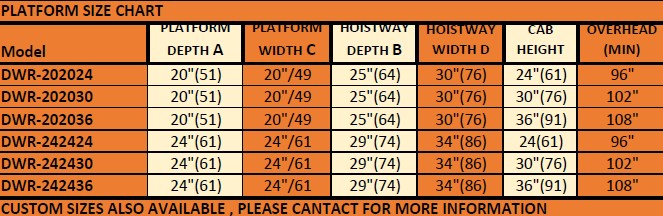

Home Dumbwaiter Elevator size and capacity
Home Dumbwaiter Elevators : Usually range from 100lbs to 150lbs. (45.5kg to 68kg. larger size and capacity also available.
Maximum size for a Home dumbwaiter can is .28CBM (10 Cubic feet). Lager size and capacity is also available.
