Dumbwaiter Elevators
Commercial dumbwaiters are small freight elevators that are designed to transport goods rather than people. Typically installed in commercial settings such as restaurants, Labs, Daycares and Stores, these small service elevators are used to move items between multiple floors quickly and effortlessly. Commercial dumbwaiters are equipped with closed cabin, pulley systems, and safety features to ensure smooth and secure transportation of goods between floors.
Quality Dumbwaiter Elevators, Know the differance !

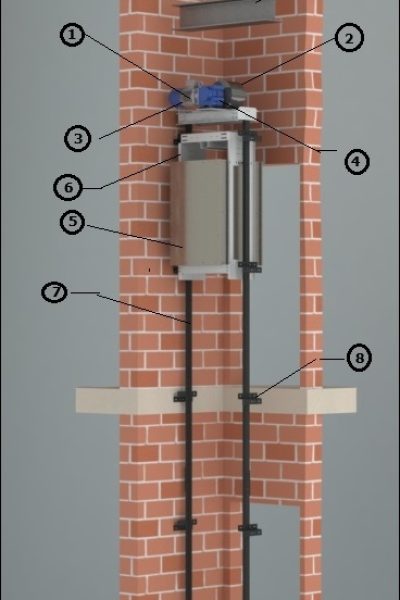

Listed below some of our featurea and benifits of our commercial Dumbwaiter Elevator.
1-Hig Quality Worm Gera Motor
Worm gears’ main advantage is its capacity to generate high reduction ratios and, as a result, high torque multiplication.
This kind of gear works as a secondary braking system as the pressure cannot transmit motion back via the worm/hoist.
2-Steel Winding Rope Drum
A steel rope drum is used in Dumbwaiter Elevators to wind, store, and deploy steel wire ropes or cables. The drum is cylindrical in shape and rotates around a central axis. As it turns, the steel rope is wound onto or unwound from the drum in a controlled manner. Providing for a smooth reliable movement of the Dumbwaiter Cabin.
3-Intragrated Motor Brake System
Intragrated Electric motor brakes are a type of brake used to stop and hold loads that are driven by motors. Motor brakes are designed to work in conjunction with a motor to slow and stop motion of the Dumbwatier.
4- Motor Speed Reducer
A gearbox is a gear train designed to modify the speed and torque characteristics of a motor. When gearboxes reduce speed, they simultaneously increase the torque (turning force) at the output. When they increase speed, they reduce torque. Providing for a Smooth reliable Dumbwaiter.
5-Steel or Stainless Steel Cabin
The tensile strength of Steel or Stainless steel is high thus the right choice for Dumbwatier elevator interiors which is under persistent operation forces. Custome colors and finishes available to fit your decor.
6- Heavy gage Steel Sling
The cabin/platform is placed in a sling, also known as the frame of an Dumbwatier elevator, and is supported by Heavy gage stee. This gives the platform support as it’s carried with the cab walls, flooring and ceiling throughout the hoistway.
7- "T" Shape Elevator Type Guide Rails
“T” Shape guide rail is a rigid track that is installed between two or more columns in an Dumbwatier elevator shaft or between floors, and to keep the cabin moving up and down, The biggest advantage of using a “T” shape guide rail is the precision and quality of Dumbwaiter ride with reliablity.
8-Heavy Gate Steel Rails Brackets
Use of heavy gage steel rails brackets is to provide provide reliable ride for years to come.
Opposising Rails desing
With guide rails on opposite sides, there is a more even distribution of forces acting on the Dumbwaiter elevator car. This can help prevent misalignment or excessive movement in the event of an emergency stop, providing a safer more reliable experience.
Dumbwatier Cab Style On/Off Same side

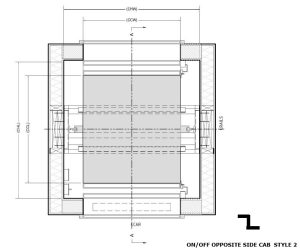

Dumbwatier Cab Style On/Off Opposite side
Dumbwaiter Loading Options
- Dumbwaiters can be loaded from the front, rear, or side, depending on the installation needs and model configuration.

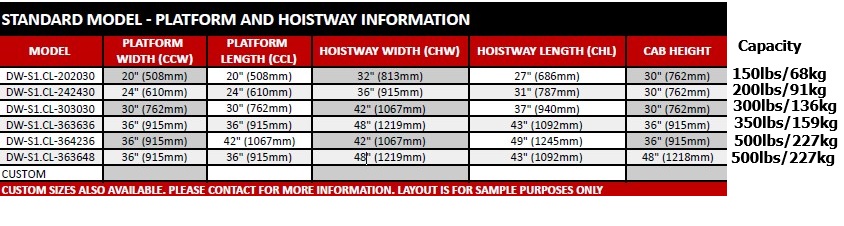

Dumbwaiter size and capacity
Commercial Dumbwaiters: Usually range from 100 to 500 pounds (45 to 225 kg).
Maximum size a commerical dumbwaiter can is 1CBM (35.3 Cubic feet)
Dumbwaiter Elevators Loading height

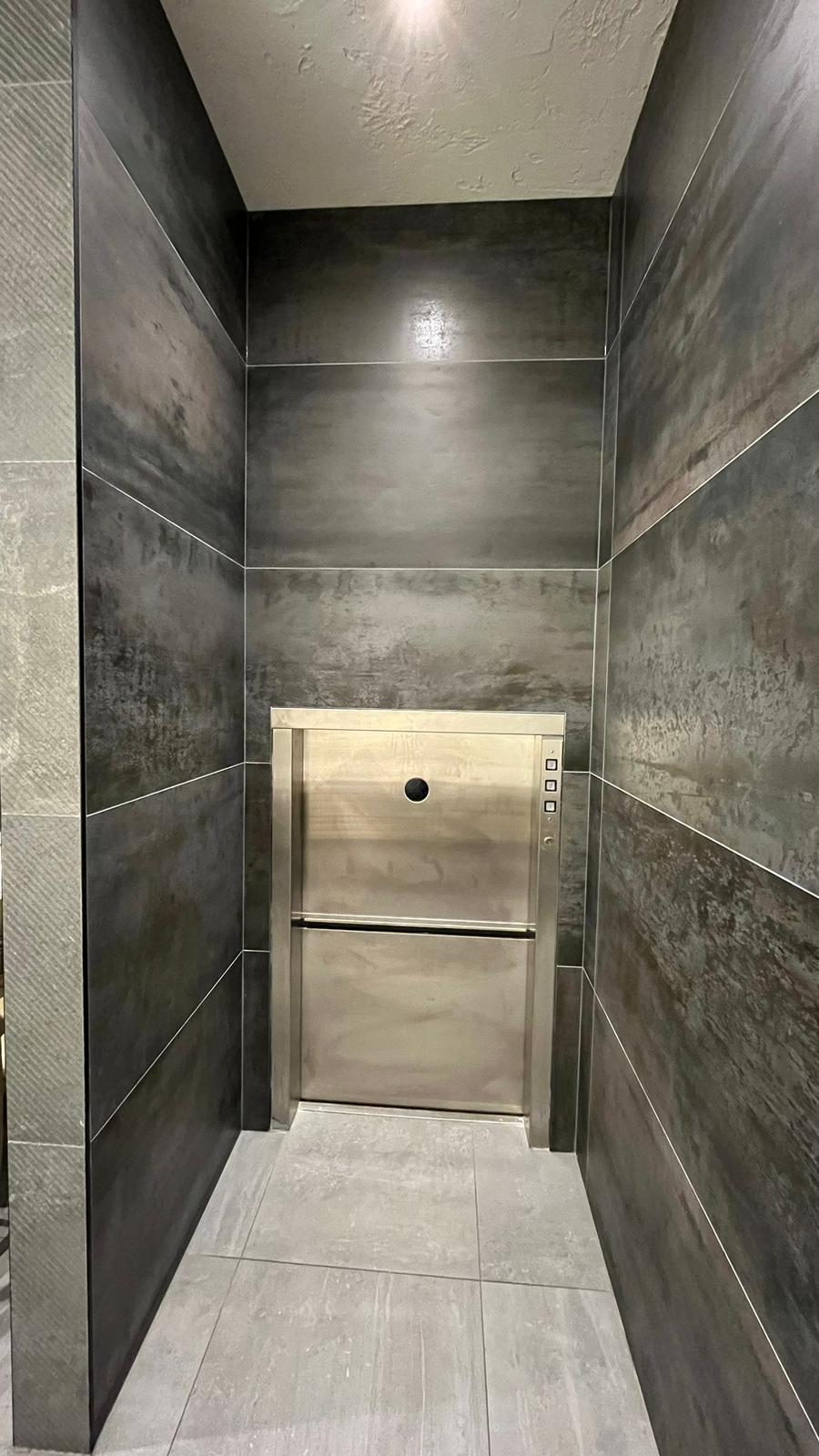

Commercial Dumbwaiters come in two loading heights Counter loading or Floor loading. Counter loading Dumbwaiter height is normally set at 36″ (915mm) above the floor level . Floor Loading Dumbwaiters are are flus with the floor (normally need a pit at lowest level) used when you want to roll are cart or other items at floor level.

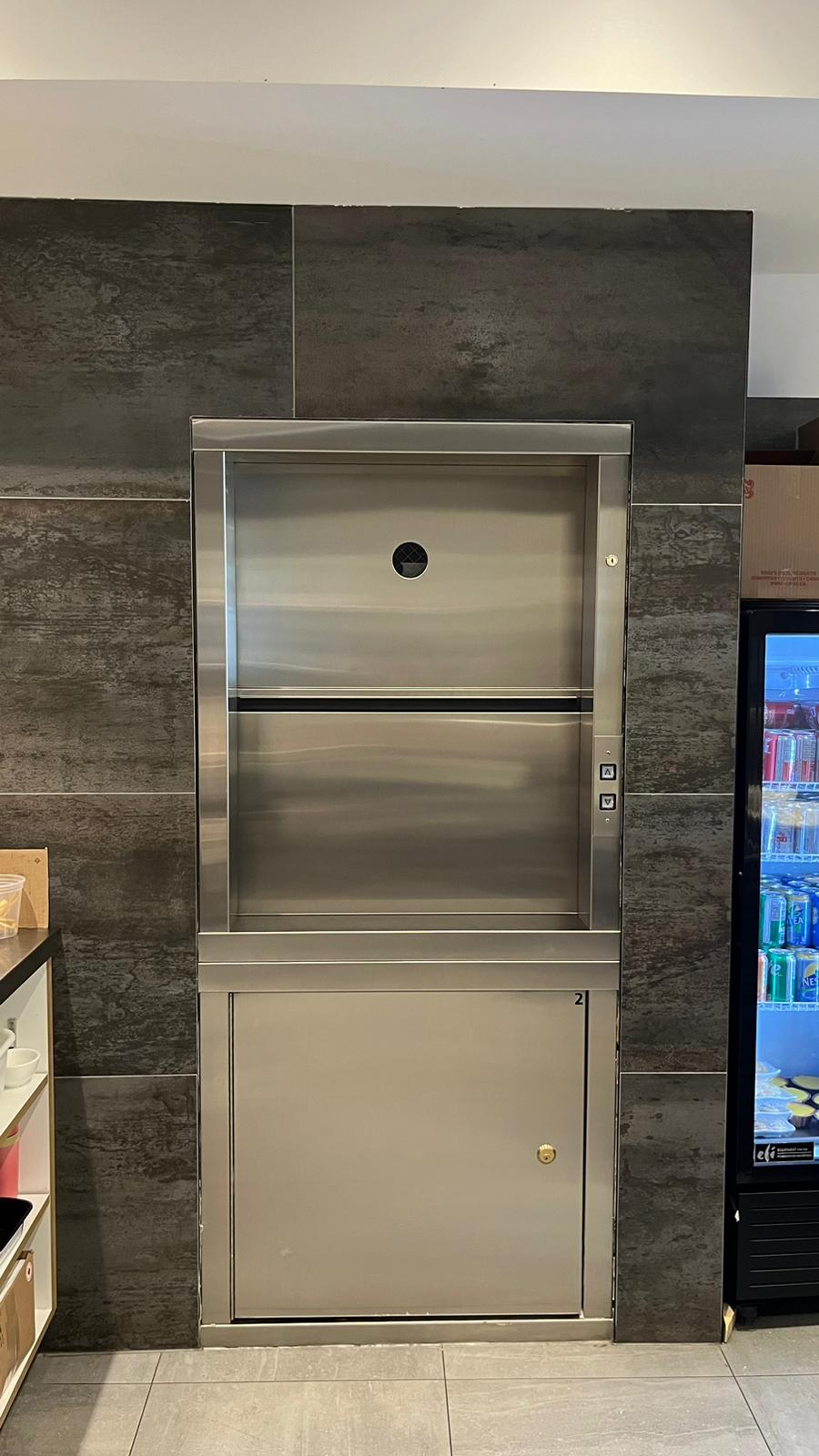

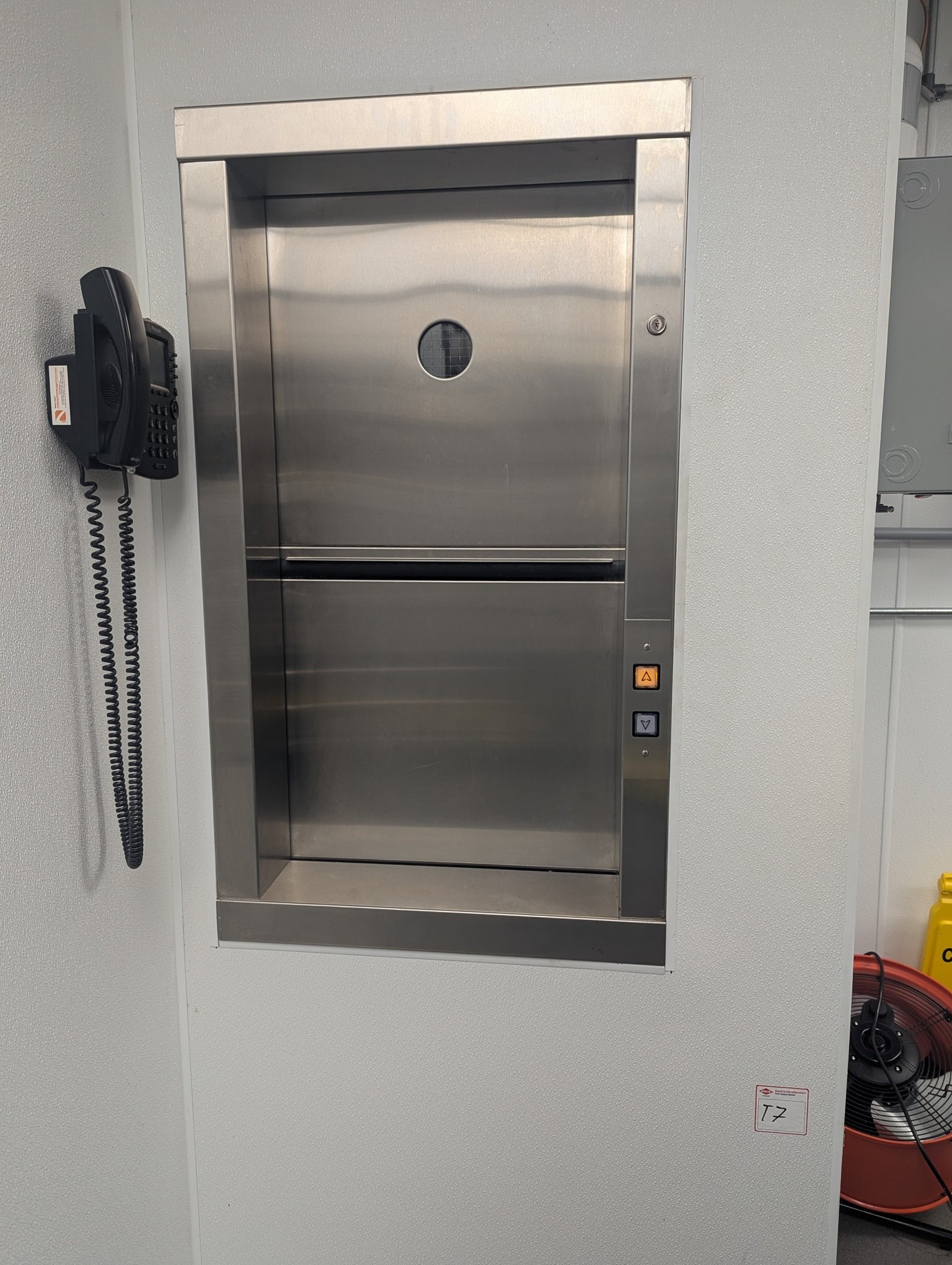

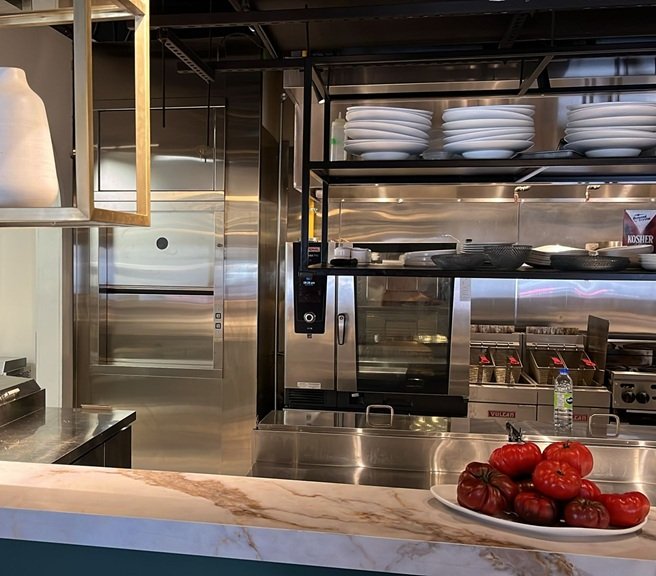

- Dumbwaiter Elevators for Restaurants

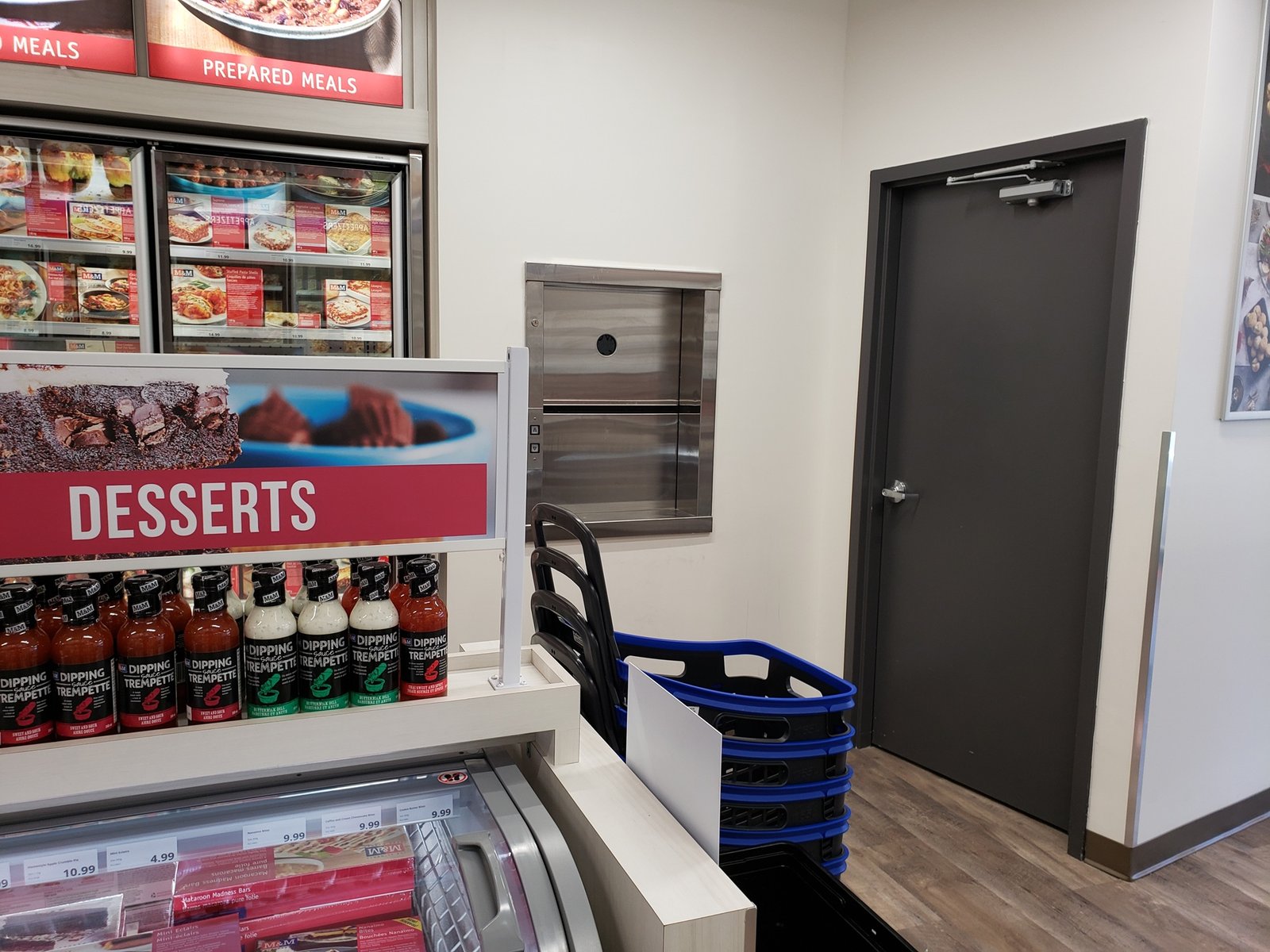

- Dumbwaiter Elevators for Retails Stores
- Dumbwaiter Elevators fro Labs.
- Dumbwaiter Elevators for Manufacturing Facility.
- Dumbwaiter Elevators for care facility.
Dumbwaiter General Specifications
- Capacity: 500lbs (227kg) Up to
- Speed : 30fps (.15m/s) or higher
- Size: 35 cubic foot (1CBM)
- Travel: 30ft (Higher options available)
- Drive: Winding drum Drive.
- Power 208V-3phase or 240V -1phase (Optional).
- Cab Options: Painted Steel or Stianless Steel
